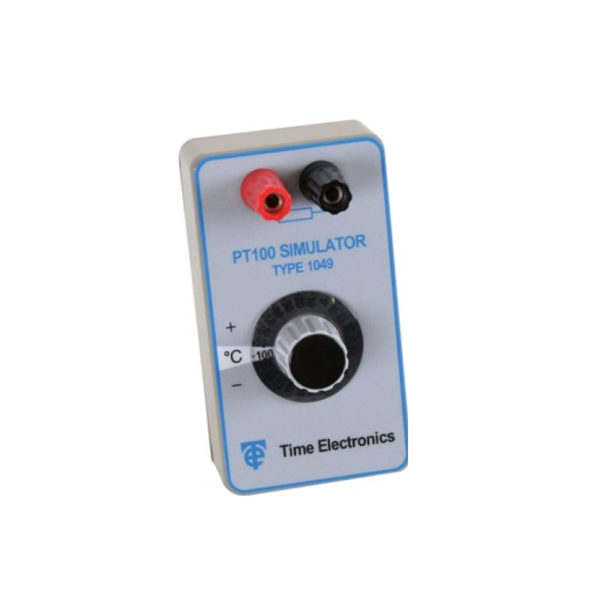

The 1049 is a handheld precision simulator for PT100 0.3850 platinum resistance elements used for accurate temperature measurement.
It follows the PT100 scale from -200°C to +800°C with 23 set points. High performance metal film resistors are used throughout which ensures a good temperature coefficient and long term stability.
The specification is in accordance with DIN EN 60751 (ITS 90). Offering high accuracy across the full operating range of PT100 devices it exceeds the performance of Class A & B. The 1049 will be of particular interest to those operating in the -60 to +60°C range where a performance exceeding Class A (e.g. better than +/- 0.15°C at 0°C), is required.
Since the 1049's output is a purely passive resistance it will operate with all types of PT100 measuring equipment including the live systems using pulsed, or interrupted excitation current. The pocket-sized design (112 x 61 x 55mm) makes it easily portable and ideal for lab or field use. The instrument is supplied as standard with a carry case.
The DAS220 portable data logger has been designed for all process applications: voltage measurements, sensor measurements (0-10v), temperature measurements (thermocouple, Pt100-Pt1000), current measurements (with optional adapter), resistance measurements, counting, frequency. You can view your measurements (curves, numerical values) and make acquisitions directly in the device's internal memory or on a USB key. Data can then be transferred to a PC using the supplied DasLab software.
Sefram DAS30/50/60 data loggers have been designed to meet all industrial measurement requirements (IEC 1010, CAT. III 600V).
The 7000 is a portable process control instrument that combines a precision digital thermometer (using RTD probes) with an RTD/ohms calibrator.
The 1090 is a high performance portable process calibrator that combines source and measurement functions for thermocouples, PT100s, µV, mV, and mA. As a multifunction instrument the 1090 combines accuracy and durability with simple operation, making it ideal for process plant applications.
The Loop-Mates are single function low-cost pocket sized units, designed for test and calibration of process loops.
