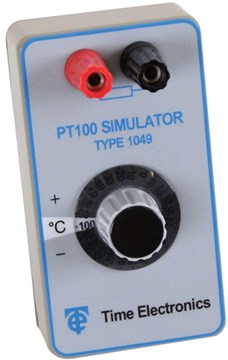

The 1049 is a handheld precision simulator for PT100 0.3850 platinum resistance elements used for accurate temperature measurement.
It follows the PT100 scale from -200°C to +800°C with 23 set points. High performance metal film resistors are used throughout which ensures a good temperature coefficient and long term stability.
The specification is in accordance with DIN EN 60751 (ITS 90). Offering high accuracy across the full operating range of PT100 devices it exceeds the performance of Class A & B. The 1049 will be of particular interest to those operating in the -60 to +60°C range where a performance exceeding Class A (e.g. better than +/- 0.15°C at 0°C), is required.
Since the 1049’s output is a purely passive resistance it will operate with all types of PT100 measuring equipment including the live systems using pulsed, or interrupted excitation current. The pocket sized design (112 x 61 x 55mm) makes it easily portable and ideal for lab or field use. The instrument is supplied as standard with a carry case.
L’enregistreur portable DAS220 a été conçu pour répondre à toutes les applications process : mesures de tension, mesure sur les capteurs (0-10v), mesures de température (thermocouple, Pt100-Pt1000), mesures de courant (avec adaptateur en option), mesures de résistance, comptage, fréquence. Vous pouvez visualiser vos mesures (courbes, valeurs numériques) et réaliser vos acquisitions directement dans la mémoire interne de l’appareil ou sur clé USB. Le transfert et l’exploitation des données se fait ensuite sur PC à l’aide du logiciel DasLab fourni.
Les enregistreurs Sefram DAS30/50/60 ont été conçus pour répondre efficacement à toutes les mesures réalisées dans le milieu industriel (CEI 1010, CAT. III 600V).
The 7000 is a portable process control instrument that combines a precision digital thermometer (using RTD probes) with an RTD/ohms calibrator.
The 1090 is a high performance portable process calibrator that combines source and measurement functions for thermocouples, PT100s, µV, mV, and mA. As a multifunction instrument the 1090 combines accuracy and durability with simple operation, making it ideal for process plant applications.
The Loop-Mates are single function low-cost pocket sized units, designed for test and calibration of process loops.
