Thermofilter

Thermofilter

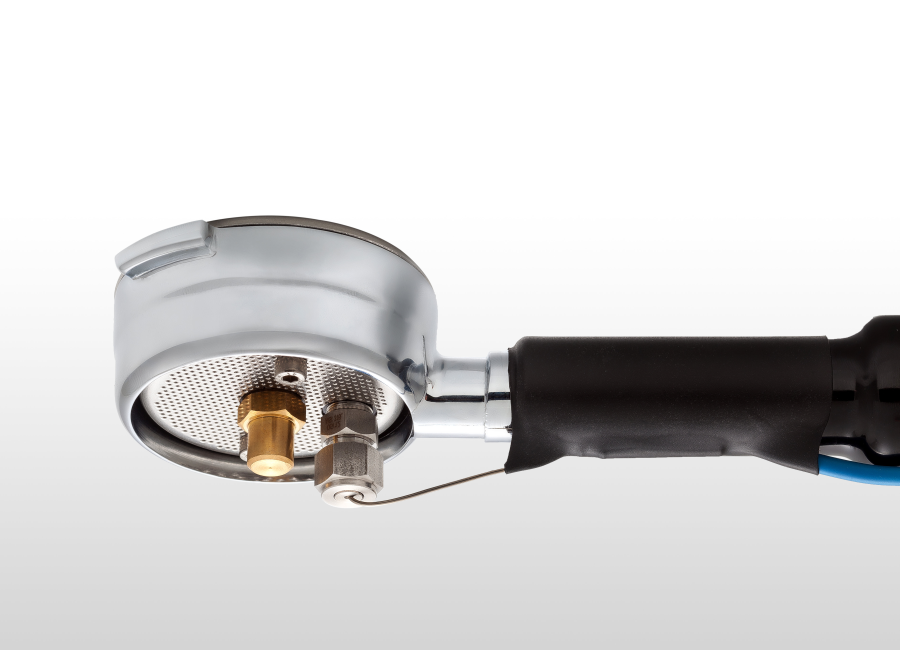

Brewing temperature probe installation in a customer supplied filter basket.

Description

Mineral insulated thermocouple for coffee machine testing

T thermocouple in compact mineral insulation cable (M.I.C.) Ø 1 mm AISI 316,ungrounded hot junction
Transition Ø 6 x 30 mm NICKEL PLATED BRASS
T compensated cable insulated in SILICON RUBBER
MINIATURE MALE compensated connector

The thermocouple has to be jointed to the filter cup (provided by customers) through sliding compression fitting in INOX 1/8 NPT-M with PTFE sealant gland+STAINLESS STEEL pressing bush
