PID controller Rail DIN mount
Programmable input, isolated analog output, multi-voltage power supply,
current transformer input, digital input, serial communication

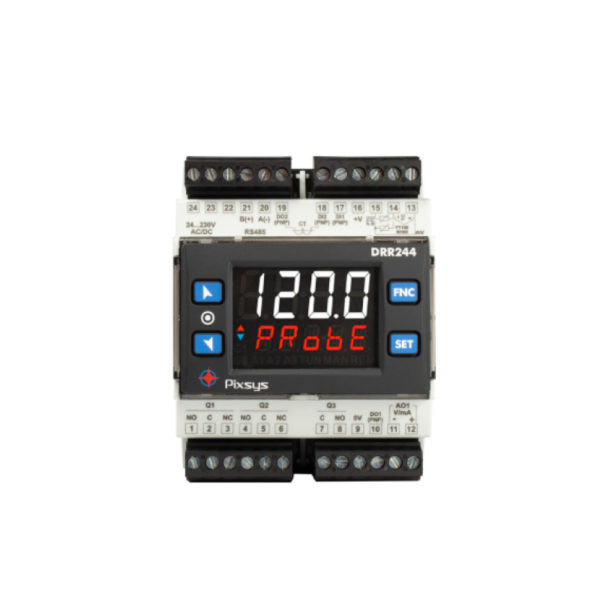

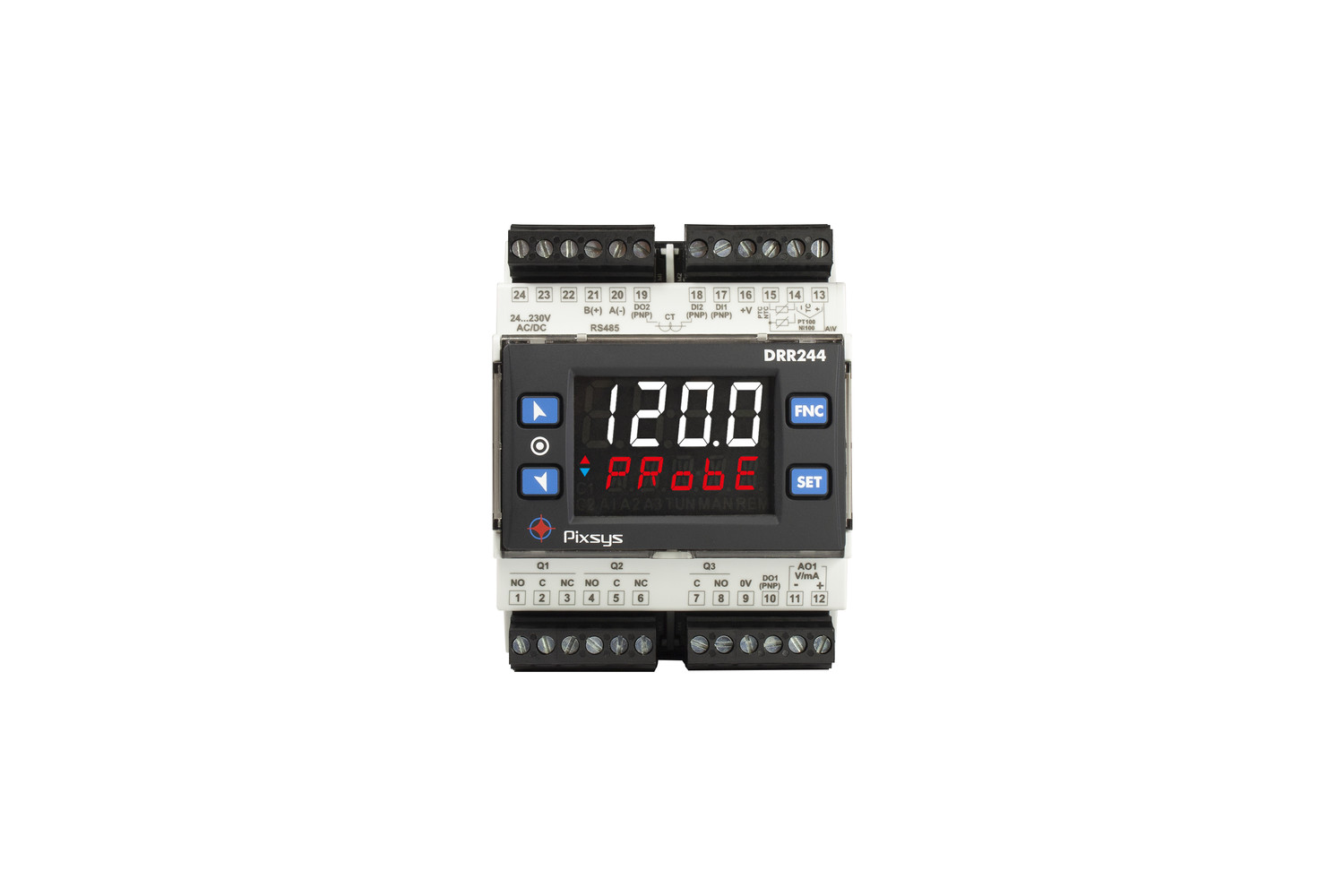

PID controller DRR244 stands out in the segment of rail-mounted controllers thanks to its flexibility and configurability that are summed up in a single ordering code. The analog input can be programmed for extensive range of temperature sensors (resistance thermometers and thermocouples) as well as for process signals mA/Volt (typically pressure transmitters, humidity and flow sensors). The outputs can be selected as command/multiple alarm modes/analogue retransmission. Serial communication is RS485 with Modbus RTU/Slave protocol. The controller is equipped with extended range power supply 24 to 230V AC/DC with galvanic isolation from the network.
The Panel and Measurement Equipment line includes signal converters, digital indicators, totalizers, predeterminers, overvoltage protection, stabilized power supplies, temperature and humidity probes.
PID controller 32 x 74mm
Programmable via NFC, Control and alarm functions, analogue/digital input,
multi-voltage power supply, serial communication
PID controller with SSR
PID thermoregulator integrated into SSR module for multizone systems
